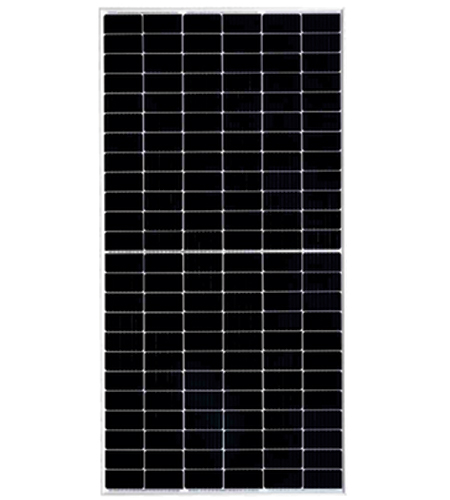

BIFACIAL - N TOPCon - 144 CELLS (DUAL GLASS)
560Wp - 590Wp
SGE XXX-144 TGG (XXX : 560-590Wp)
Key Features
- N-Type with Very Low LID Resulting in higher power generation
- Positive Tolerance Power output with a positive tolerance.
- Higher Module Efficiency Module Efficiency Up-to 22.84%
- 10-30% more power generation When compared with the P-type module
- Advanced technology MBB-Multi Bus-bar (16BB) Half-cut N-TOPCon cell
BIFACIAL - MONO PERC - 144 Cells
525 Wp | 530 Wp | 535 Wp | 540 Wp | 545 Wp
SGE XXX-144 MBHC (XXX-525-545 Wp)
Key Features
- Positive Tolerance Power output with a positive tolerance.
- Advanced Technology MBB- Multi Busbar (10BB) / Halfcut MONOPERC cells /Ga Doped Wafers.
- Excellent PID Resistance Excellent Anti-PID performance and certified for up-to 288 Hrs
- Rigorous Testing Criteria 100% I-V Measurement, HiPOT test and EL inspection, ensures defect-free modules.
- Bifaciality Factor 70 _+ 5% The ratio of rear efficiency in relation to the front efficiency subject to the same irradiance
MONO PERC - 144 Cells
525 Wp | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp
SGE XXX-144 MHC (XXX-525-550 Wp)
Key Features
- Advanced Technology MBB- Multi Busbar (10BB) / Halfcut MONOPERC cells /Ga Doped Wafers.
- Positive Tolerance Power output with positive tolerance.
- Excellent PID Resistance Excellent Anti-PID
- Rigorous Testing Criteria 100% I-V Measurement, HiPOT test and EL inspection, ensures defect-free modules
- High Module Conversion Efficiency Module efficiency up to 21.29 % achieved through advanced cell technology and manufacturing process.
Electrical Characteristics
| Model | MTK20/12V | MTK40/12V | MTK50/12V | MTK75/12V | MTK100/12V | MTK150/12V | MTK260/24V | MTK320/24V |
|---|---|---|---|---|---|---|---|---|
| Nominal Maximum Power (Pm) in Welts | 20 | 40 | 50 | 75 | 100 | 150 | 260 | 320 |
| Power Tolerance | +ve Tolerance only | |||||||
| Open Circuit Voltage (Voc) In Volts | 21.90 | 21.90 | 21.90 | 21.90 | 21.90 | 22.50 | 37.60 | 45.00 |
| Short Circuit Current (Isc) In Amps | 3.02 | 3.02 | 3.02 | 4.59 | 6.12 | 8.81 | 8.88 | 9.17 |
| Voltage at Maximum Power (Vmp) in Volts | 17.96 | 17.96 | 17.96 | 17.96 | 17.96 | 17.96 | 31.00 | 36.20 |
| Current at Maximum Power (Imp) in Amps | 2.87 | 2.87 | 2.87 | 4.18 | 5.57 | 8.36 | 8.40 | 8.84 |
| Maximum System Voltage in Volts | 1000 | |||||||
Mehchanical Characteristics
| Model | MTK20/12V | MTK40/12V | MTK50/12V | MTK75/12V | MTK100/12V | MTK150/12V | MTK260/24V | MTK320/24V |
|---|---|---|---|---|---|---|---|---|
| Length x Width x Thickness (1.0110)-mm | 545x665x35 | 545x665x35 | 545x665x35 | 775x485x35 | 1010x665x35 | 1495x665x35 | 1639x991x35/40 | 1955x991x35 |
| Mounting Holes Pitch (Y) - mm | 200 | 200 | 200 | 400 | 500 | 980 | 980 | 978 |
| Mounting Holes Pitch (X) - mm | 630 | 630 | 630 | 630 | 630 | 830 | 951 | 946 |
| Weight (Kg.) | 5.62 | 5.62 | 5.62 | 6.26 | 7.70 | 10.87 | 18.13 | 21.5 |
| Solar Cells per Module (units) /Arrangement | 36/(9x4) | 361(9x4) | 36/(9x4) | 38/(9x4) | 36/(9x4) | 36/(9x4) | 60/(10x6) | 721(12x6) |
| Soler Cells Type | Multi Crystalline Silicon | |||||||
| Front Cover (Material/ Thickness) | Tempered 8 Low Iron Glass / 3.2mm | |||||||
| Front Cover (Material/ Thickness) | Ethylene Vinyl Acetate | |||||||
| Front Cover (Material/ Thickness) | Anodized Aluminum Alloy | |||||||
| Front Cover (Material/ Thickness) | IP67/1P68 Enclosure with Bypass Diodes | |||||||
