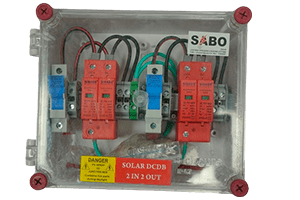

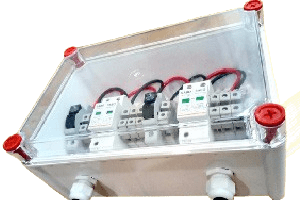

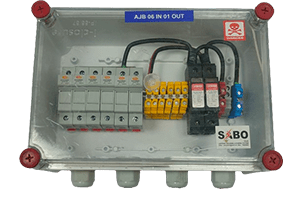

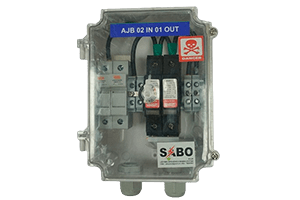

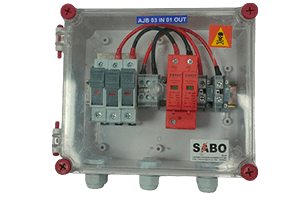

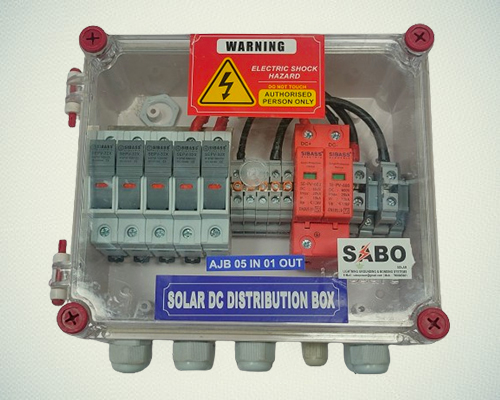

DCDB : Array Junction Box / DC Distribution Box

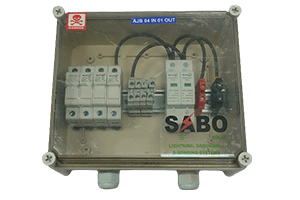

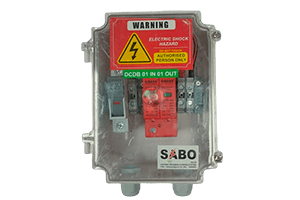

Sabo Systems is a leading Array Junction Box Manufacturers. Array Junction Box (AJB) also known as DCDB (Direct Current Distribution Box), controls the DC power from Solar Panels and with having necessary surge protection device (SPD) and fuses to protect to solar panels strings and solar inverter from any type of damage. All components used are in accordance with per IEC 61643, IEC 60947, etc.
TECHNICAL SPECIFICATIONS of DCDB:
| Ambient | -10 to 60 Degree C |
| Type of Enclosure | IP66 Polycarbonate Material Transparent Top |
| Inputs/Outputs | 1 in 1 Out, 2 in 2 Out, 3 in 3 Out, 4 in 4 Out/ As per requirement |
| DC Switching | 600/1000V 1500V DC VDC Fuse Disconnection |
| Surge Protection | DC SPD 600V,1000V,1500V Type 2 with Indication |
| Indication lights | LED (R/ R,Y,B) |
| Terminals | 6 sq.mm./ As per requirement |
| Cable glands | Polyamide with lock nut |
| Wiring | DC Copper wire 4 sq.mm. of ISI make |
ACDB : AC Distribution Box, AC Junction Box

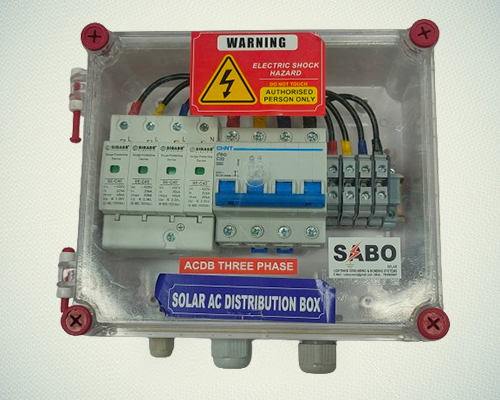

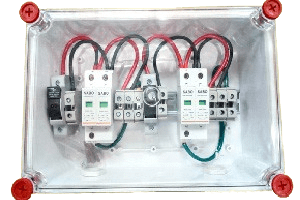

The ACDB (Alternative Current Distribution Box) receives the AC power from the solar inverter and directs it to AC loads through the distribution board. ACDB includes necessary surge protection device (SPD)and circuit breaker, LED lights and terminals to protect the solar inverter from any type of damage or heavy voltage. Specifications of ACDB may change as per load orinverter capacity. ACDB provided at the cable terminating point emanating from 05 KVA Solar Inverter for interconnection control of dedicated electrical loads.
TECHNICAL SPECIFICATIONS of ACDB :
| Ambient | -10 to 60 Degree C |
| Type of Enclosure | IP66 Polycarbonate Material |
| Inputs/Outputs | Single Phase / 3 Phase |
| DC Switching | MCCB/MCB Based AC Disconnection |
| Surge Protection | AC SPD Type 2 |
| Indication lights | LED (R/ R,Y,B) |
| Terminals | 16 sq.mm./ As per requirement |
| Cable glands | Polyamide with lock nut |
| Wiring | Copper flexible as per IS 694 of ISI make |
