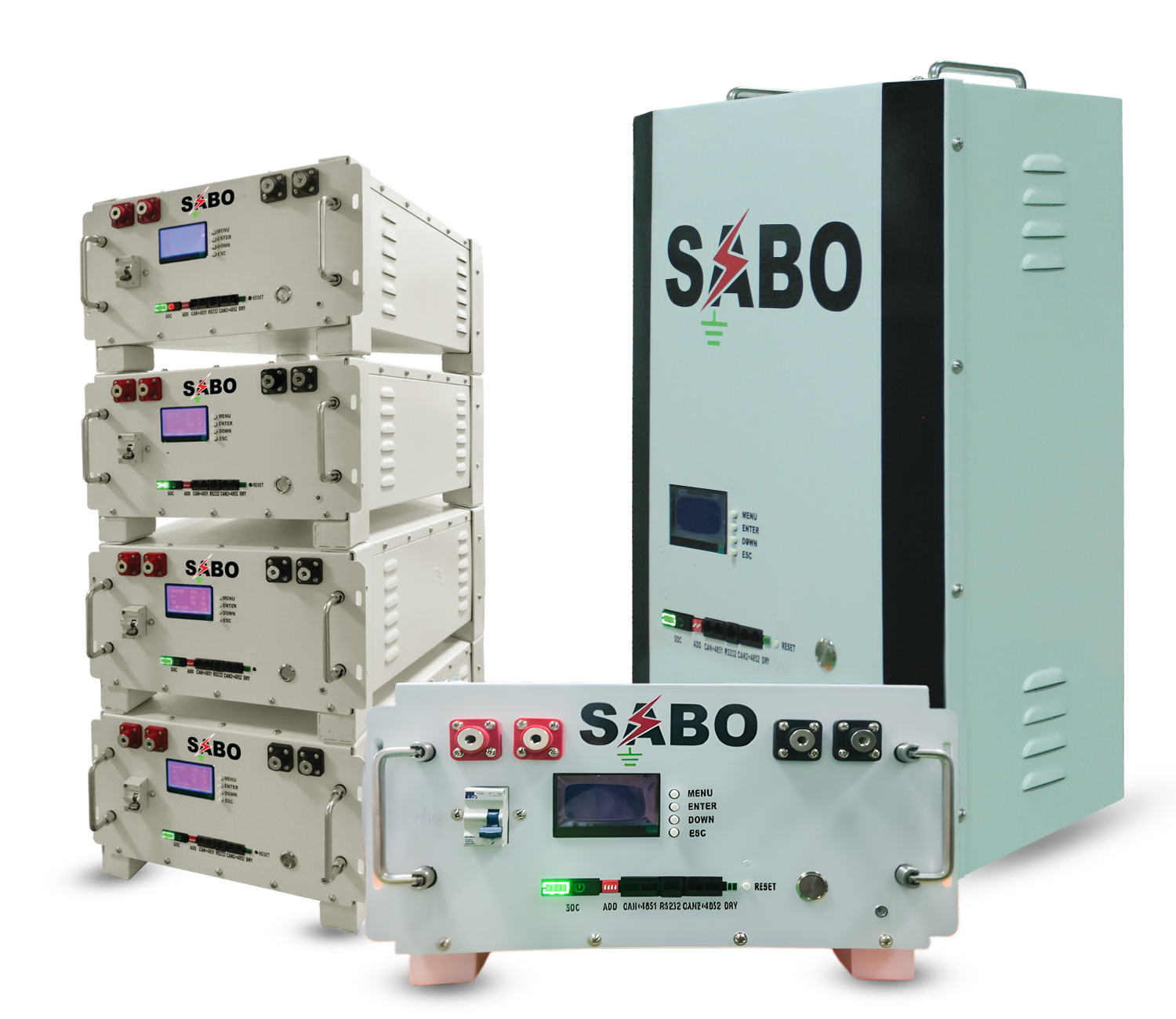

SABO LITHIUM-ION BATTERIES
51.2V 100Ah
Main Parameters
| CHARACTERISTICS | SPECIFICATIONS |
| Battery Chemistry | LIFEPO4 |
| Capacity (Ah) | 100 AH |
| Scalability | MAX.16 NOS. IN PARALLEL (81.92 KWH) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 41.6~58.4 |
| Rated Capacity (kWh) | 5.12 |
| Usable Energy @90% DoD (kWh) | 4.6 |
| Charge | Recommend | 30 |
| Current (A) | Max. | 50 |
| Discharge | Max. | 50 |
| Current (A) | Peak (12sec, 25C) | 70 |
| Fan | 100 |
| Recommend Depth of Discharge | 90% |
| Dimension (mm) | BATTERY 602*400*220 |
| Weight Approximate (kg)/td> | 62 |
| Interface Panel Display | 4LED(SOC:25%~SOC100%), LCD (VOLTAGE, CURRENT, TEMPERATURE, SOC) |
| IP Rating of Enclosure* | IP55* |
| Operating Temperature | CHARGE:0-55C ̊/ DISCHARGE :- 20C ̊~55C ̊ |
| Storage Temperature | 0C ̊~35C ̊ |
| Humidity | 5% ~ 95% |
| Altitude | ≤2000M |
| Cycle Life | 6000* |
| Installation | WALL MOUNTED / FLOOR MOUNTED |
| Communication Port | CAN2.0, RS485 |
| Warranty Period* | 5 YEARS* |
