BACKFILL EARTHING COMPOUND
Sabo Systems is a leading Backfill Earthing Compound Manufacturers. We are engaged in offering a wide range of Back Filling Earthing Compound to our clients. These products are used to improve the conductivity of the earth electrode and ground electrode. The products that we offer to our clients are manufactured using high grade raw material using high technology machines. Our professionals manufacture these products keeping in mind the needs and requirements of our clients as per the set international standards. The product that we offer in this category is Earth Resistance Enhancement Compound. These products are in huge demand across the globe.

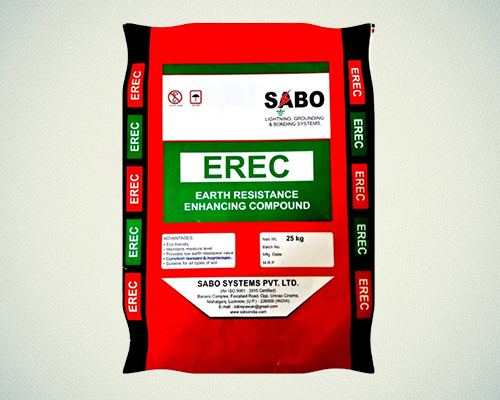

Back Fill Compound (SABO-EREC)
SABO-EREC is a superior conductive material that improves earthing effectiveness, especially in areas of poor conductivity (rocky ground, areas of moisture variation, sandy soils etc.).
NABL Lab tested 0.039 Ohm-m resistivity. It improves conductivity of the earth electrode and ground contact area.
Features:
- high conductivity, improves earth's absorbing power and humidity retention capability
- non-corrosive in nature having low water solubility but highly hygroscopic.
- suitable for installation in dry form or in a slurry form.
- does not depend on presence of water to maintain its conductivity.
- permanent & maintenance free and in its “set form”, maintains constant earth resistance with time.
- thermally stable between -100 C to + 600 C ambient temperatures.
- does not require periodic charging treatment nor replacement and maintenance.
- suitable for any kind of electrode and all kinds of soils of different resistivity.
- does not pollute the soil or local water table and meets environmental friendly requirements for landfill.
- non explosive.
- does not cause burns, irritation to eye, skin etc.

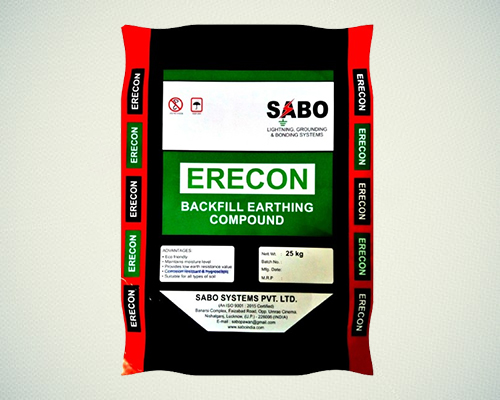

Ground Resistivity Improver Compound (ERECON)
This is non corrosive, has capacity to absorb & retain moisture from the surrounding. Being non soluble in water, it stays at the place and in not washed out by the rain water/underground water. This mineral filling compound is highly conductive. Back fill compound : Back fill compound is a conductivity improver compound. It is a specially developed compound for having quality of highly conduciveness, non corrosive, absorbing & retaining the moisture for a long time.
Features:
High conductive Non corrosive
Reduce soil resistivity
Retain moisture for a long time
Gel Earthing
Gel Earthing
SABO earthing electrode consists of primary earthing electrode (outer pipe) of 99.9% pure copper pipe. The hollow space of the electrode is duly filled with a highly conductive and non-corrosive compound which safeguards the electrode against any corrosion and helps in faster dissipation of the fault or leakage current flowing through the earthing electrode. Both the ends of the earthing electrode are permanently sealed and the top portion of the copper pipe electrode is compressed under a hydraulic machine to form a lead terminal provided at the top with the 2 holes for connecting to the load/equipment. Since there is no joint on the top portion of the copper pipe earth electrode, the dissipation of the current is ensured to the maximum level and the ohmic value is maintained precisely. Depending upon the soil conditions, back fill compounds are selected to install along with the earthing electrode. Reslow grounding minerals are selected for normal soil conditions & Carbofill grounding minerals is selected for rocky / sandy soil conditions.
